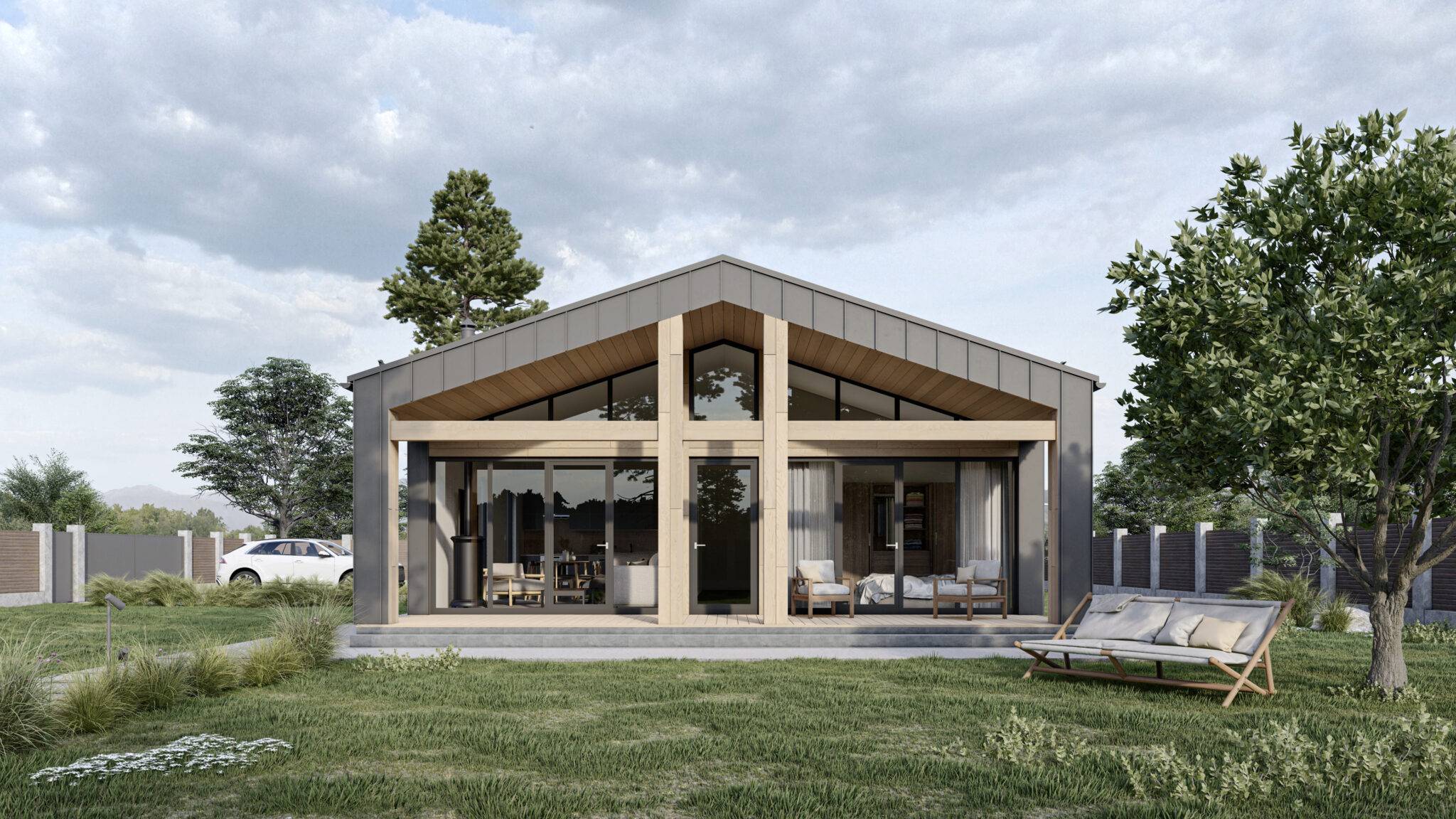

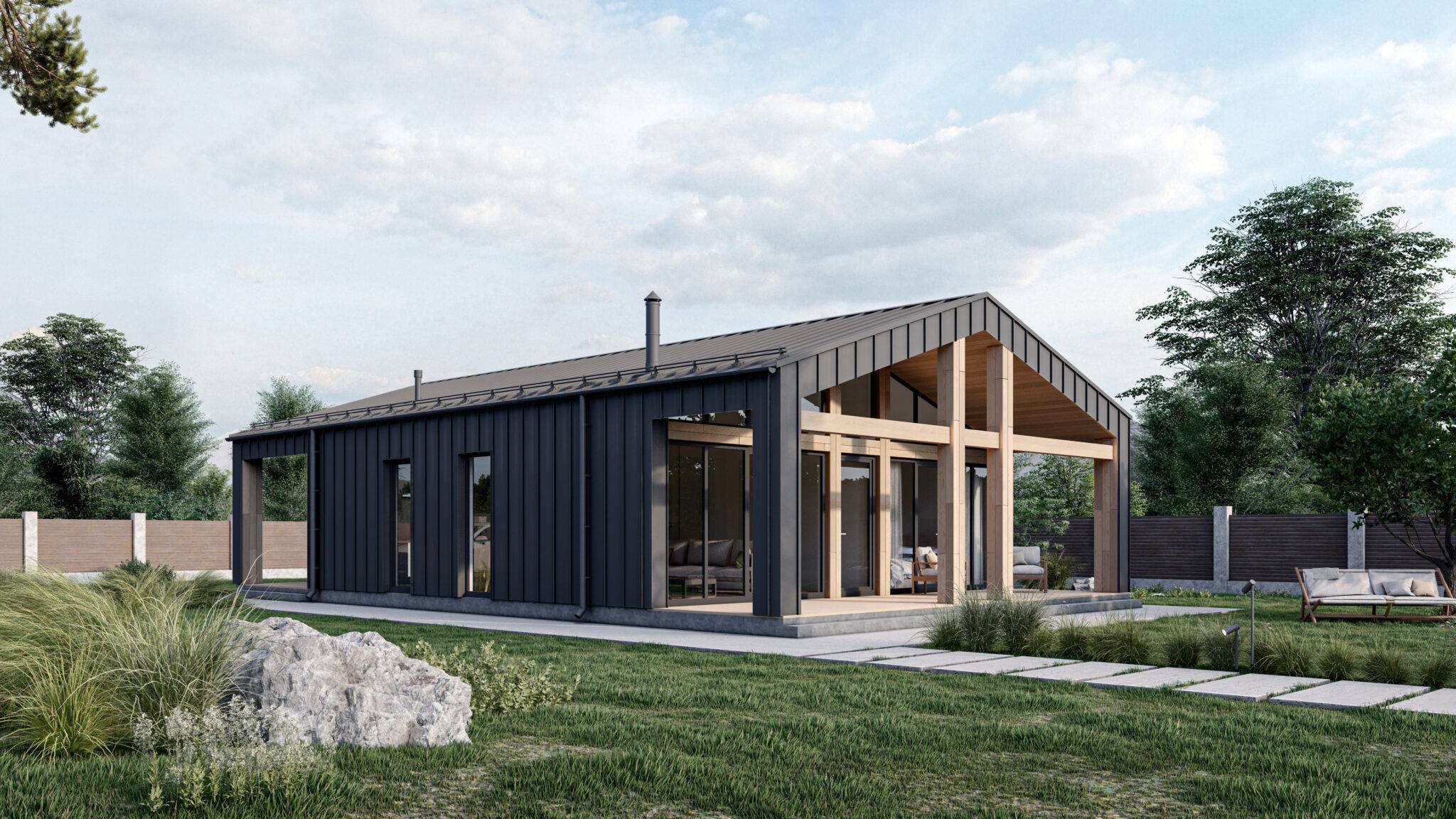

Barnhouse made of SIP-panels wth three bedrooms, 116 sq.m.
Barnhouse made of SIP-panels wth three bedrooms, 116 sq.m.
Project number:
274 - TYP - 1
Type:
House
Location:
Ukraine

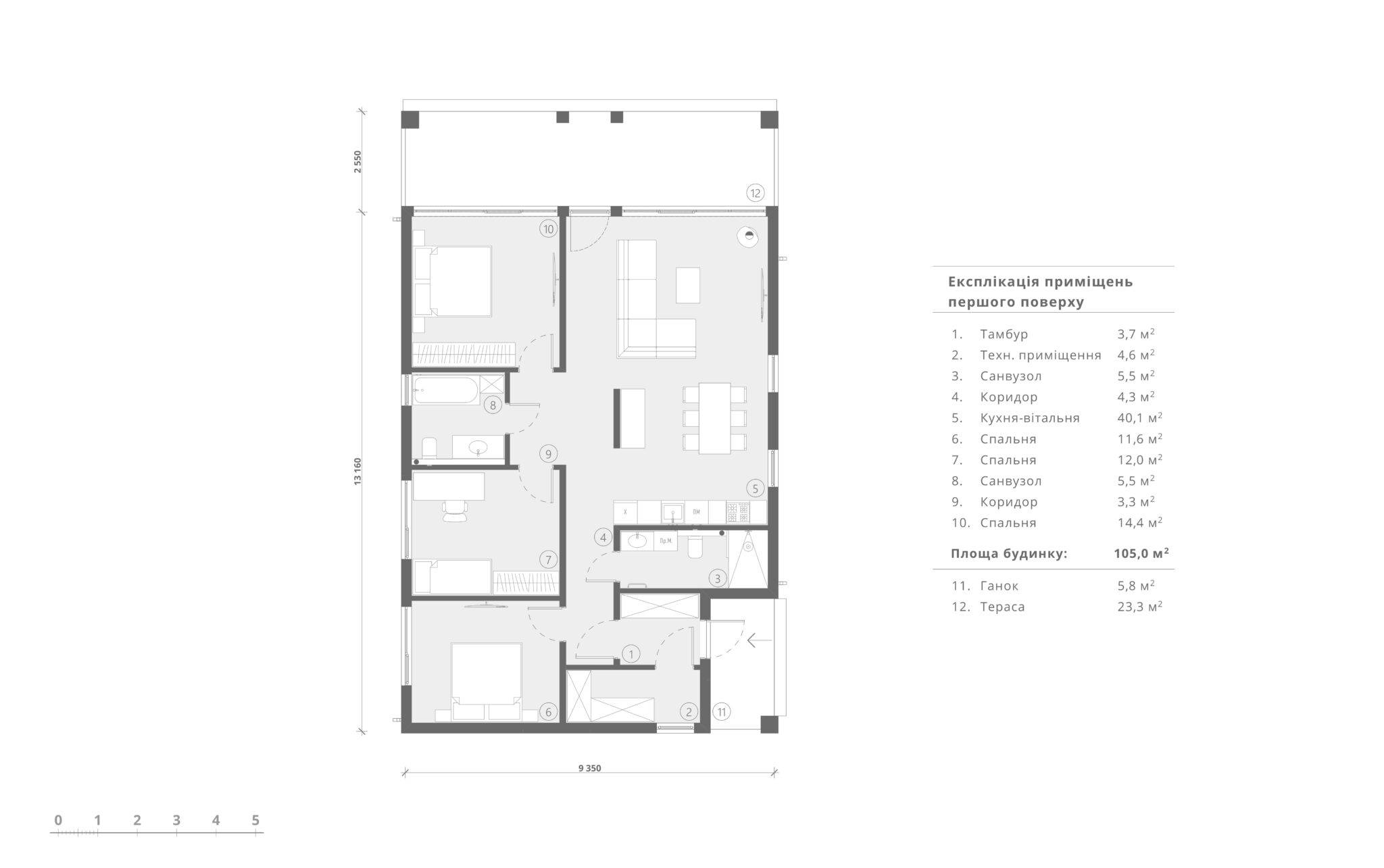

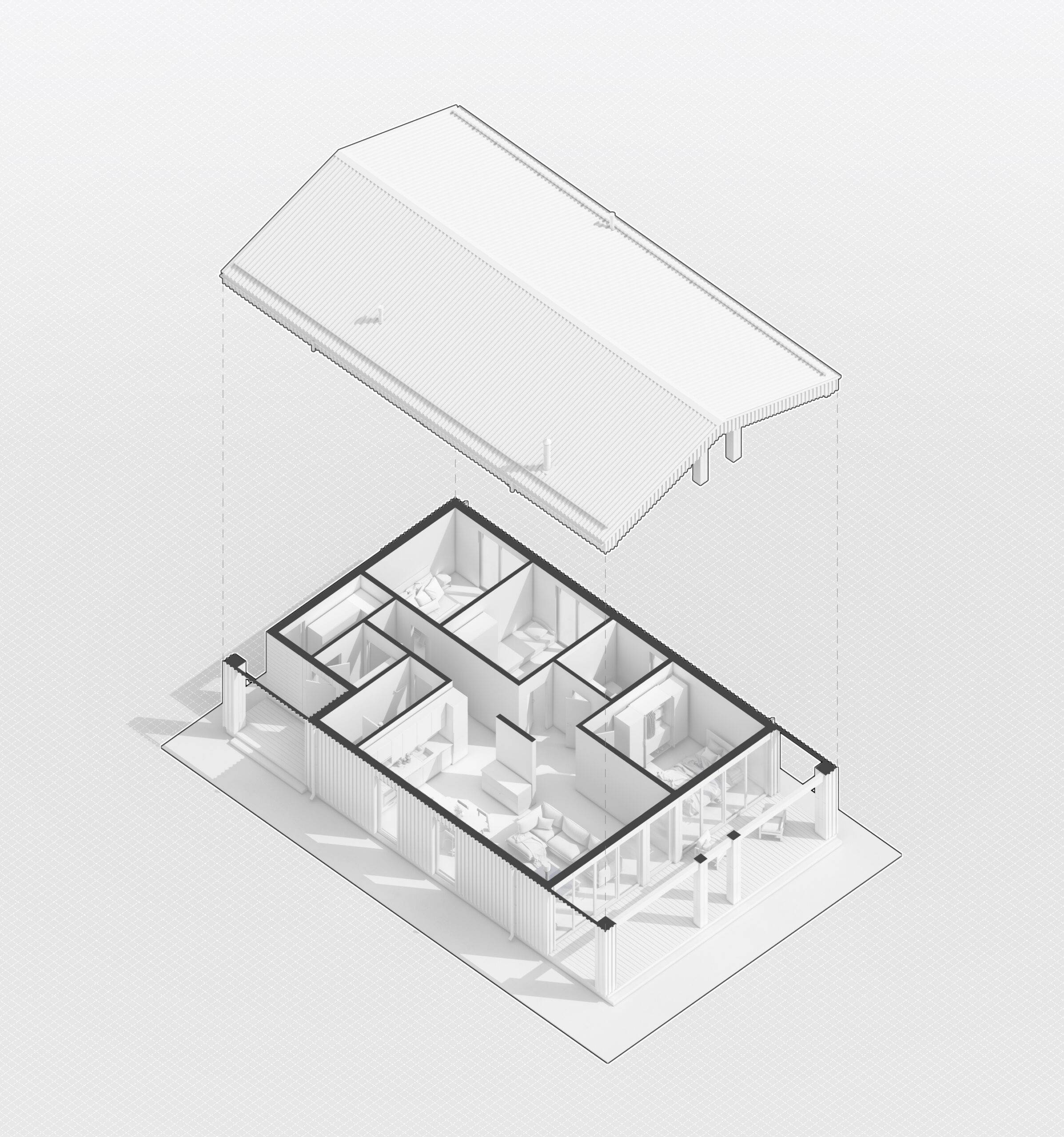

One-story house of 116 m2. It has three bedrooms (11.4, 12.0 and 14.4 m2) and two bathrooms of 5.5 m2. The house contains all the necessary areas for a comfortable stay. Through the entrance vestibule (3.7 m2) we can get into the tech. room (4.6 m2) and a corridor (4.3 m2) leading to a spacious kitchen-living room (40.1 m2). The kitchen-living room has a convenient zoning, which includes a kitchen area, a storage area, a dining area and a sitting area by the fireplace. A large number of windows makes the house bright and cozy inside and aesthetically attractive and modern outside. Adjacent to the house is a spacious covered terrace (23.3 m2), which will definitely become a favorite place of the family, especially in the warm season.
House review
House Specification:
- Foundation:
- Reinforced concrete pile-raft foundation with rough insulated screed and permanent formwork made of thermal blocks.
- Basic utility connections – sewage and electricity.
- House Kit:
- Load-bearing walls – SIP 160 mm (10 mm OSB-3, manufactured by EGGER, insulation HIRSCH Porozell, Austria).
- Partitions – SIP 120 mm (10 mm OSB-3, manufactured by EGGER, insulation HIRSCH Porozell, Austria).
- Roof – SIP 220 mm (10 mm OSB-3, manufactured by EGGER, insulation HIRSCH Porozell, Austria).
- Rafter system for the terrace and porch canopy.
- Windows and Doors:
- Energy-efficient, 5-chamber profile, double-glazed unit with 2 chambers, external lamination.
- Insulated metal entrance door.
- Roofing:
- Corrugated metal sheet T-18, Arvedi, Italy.
- Installation of a drainage system, Poland.
- Ceiling cladding for the terrace and porch – wooden planken.

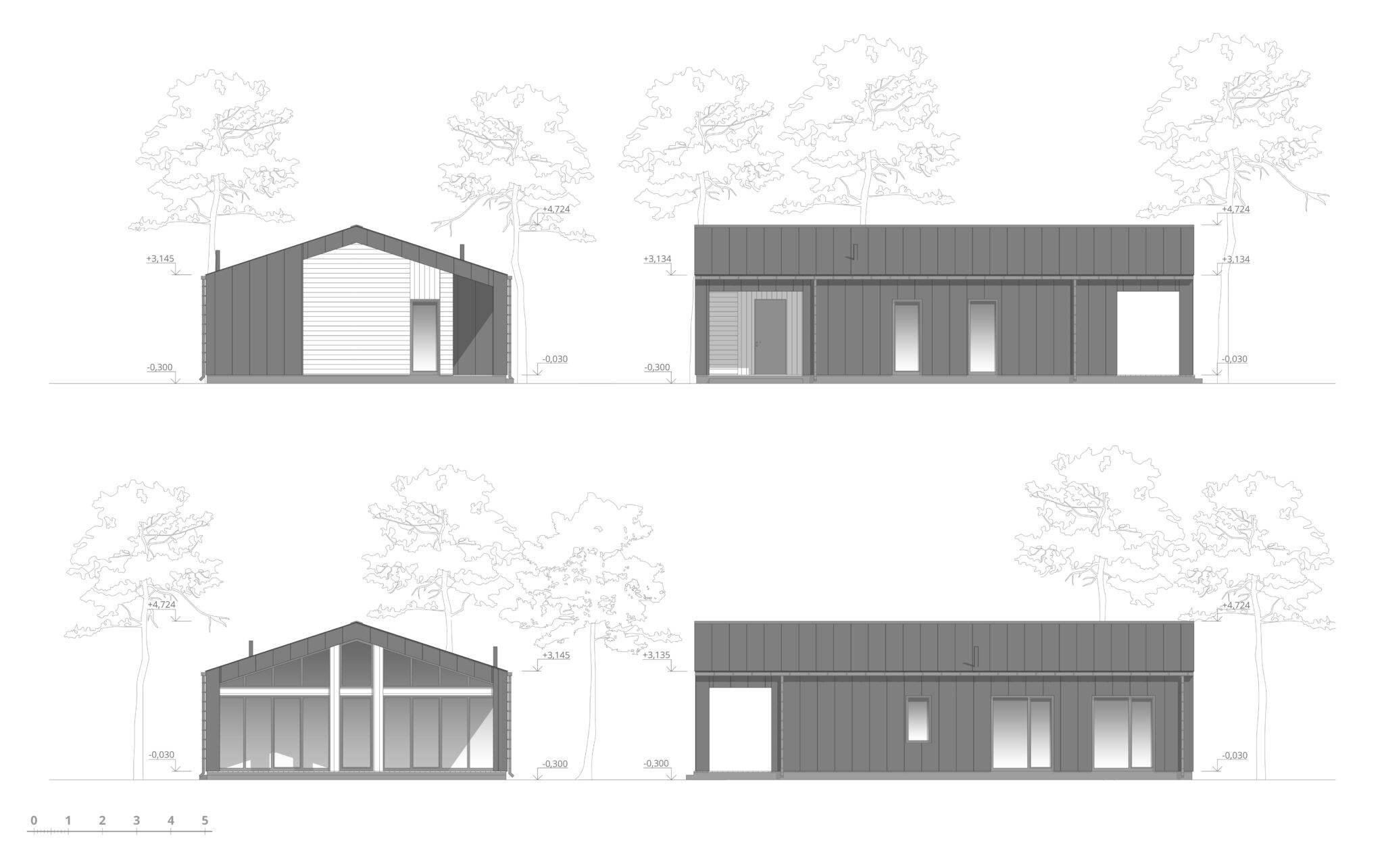

- Facade Finishing:
- Insulation with 50 mm mineral wool, corrugated metal sheet T-18, Arvedi, Italy.
- Insulation with 50 mm mineral wool, wooden planken.

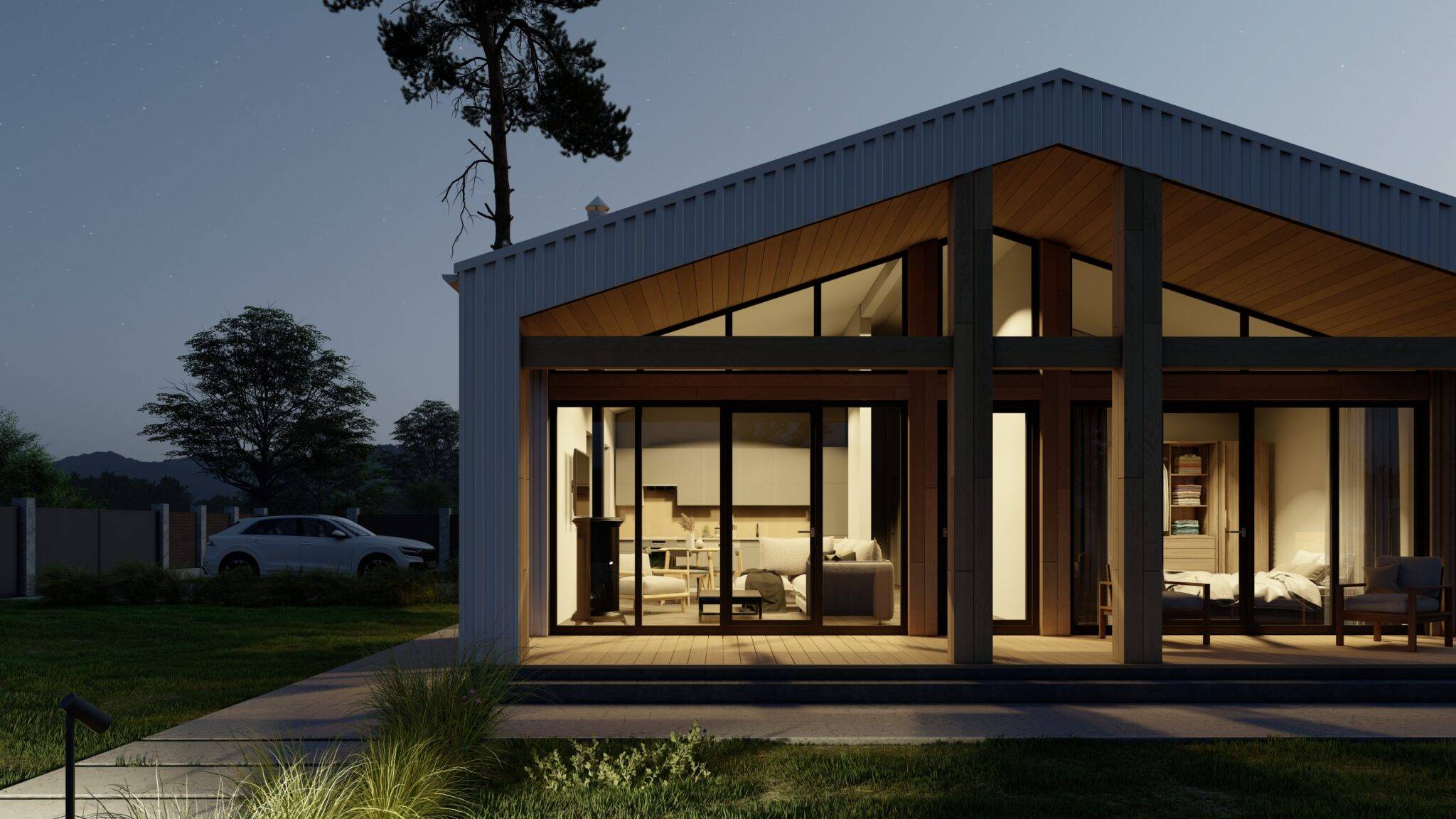

- Terrace (optional):
- Load-bearing wooden platform with natural spruce decking.
- Or load-bearing metal platform with composite decking.
